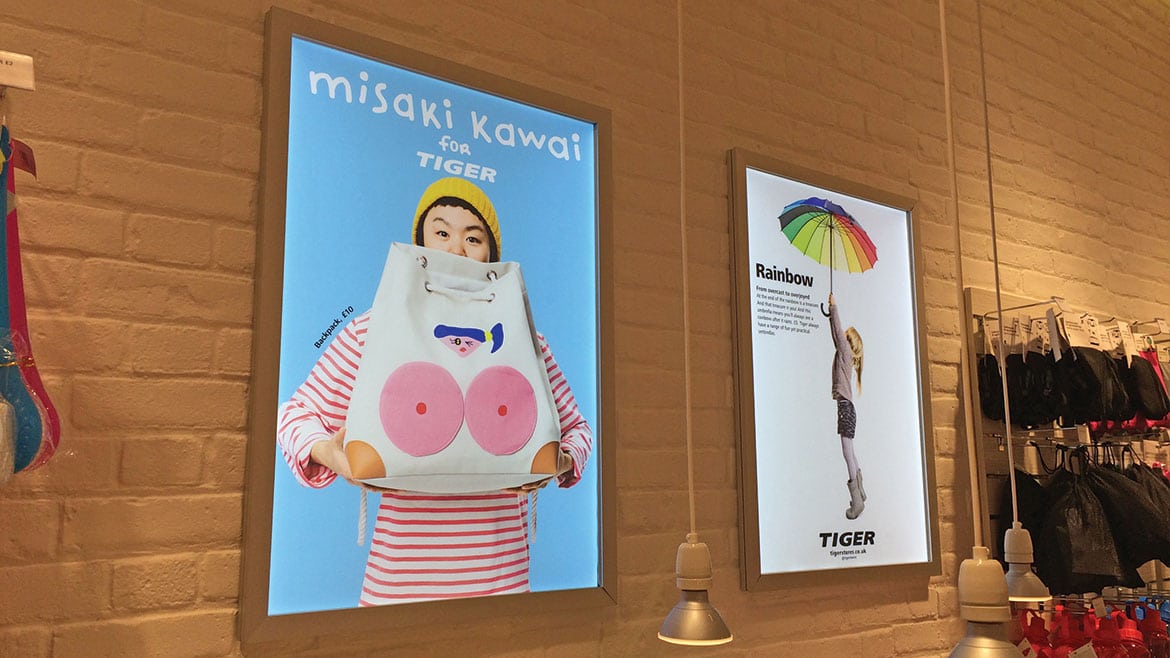

Razor LED Light Box in Tiger Stores

Razor Snap Frame LED Lightbox - Specification

EU MadeCertifiedEco
    Razor LED Light Box Profiles
  • Dimensions: Standard poster sizes A0, A1, A2, A3 and bespoke up to 6 sheet (1800mm x 1200mm).
  • Depth: 26mm deep single sided or 39mm deep double sided.
  • Snap Frame Profiles: 32mm wide soft-curve, 32mm wide flat or 32mm wide tamper resistant.
  • Colour: Silver Anodised as standard or RAL colours are available upon request.
  • Front Sheet: 0.5mm UV resistant clear APET antiglare sheet.
  • Back Panel: 0.3mm synthetic white sheet.
  • Lighting panel: 8mm clear acrylic specially developed for lighting applications.*
  • Illumination: High brightness & long life LEDs** with cable, external transformer and plug.
  • Cable exit: From side of lightbox base profile as standard, or from rear upon request.
  • Certification: This product is CE certified approved - CE Certified.

  • *Brightness can vary slightly on different sized ultra thin lightboxes backlit with LED light panels.

    **LEDs used have a long life expectancy rating of L70 Lumen maintenance at 50,000 hours; meaning the LEDs will offer circa 70% of original light output at 50,000 hours if usage.







The specification table below shows the visual, poster and overall sizes for the Razor LED light box:

Item Power
(W)
Weight
(KG)
Depth
(mm)
Visual size (mm) Poster size (mm) Overall size (mm)
W H W H W H
A3 14 5.30 26 280 403 297 420 344 467
A2 20 7.20 26 403 577 420 594 467 641
A1 26 10.70 26 577 824 594 841 641 888
A0 38 17.50 26 824 1172 841 1189 888 1236

Razor Specification Gallery

Razor LED Light Box - Product Video
