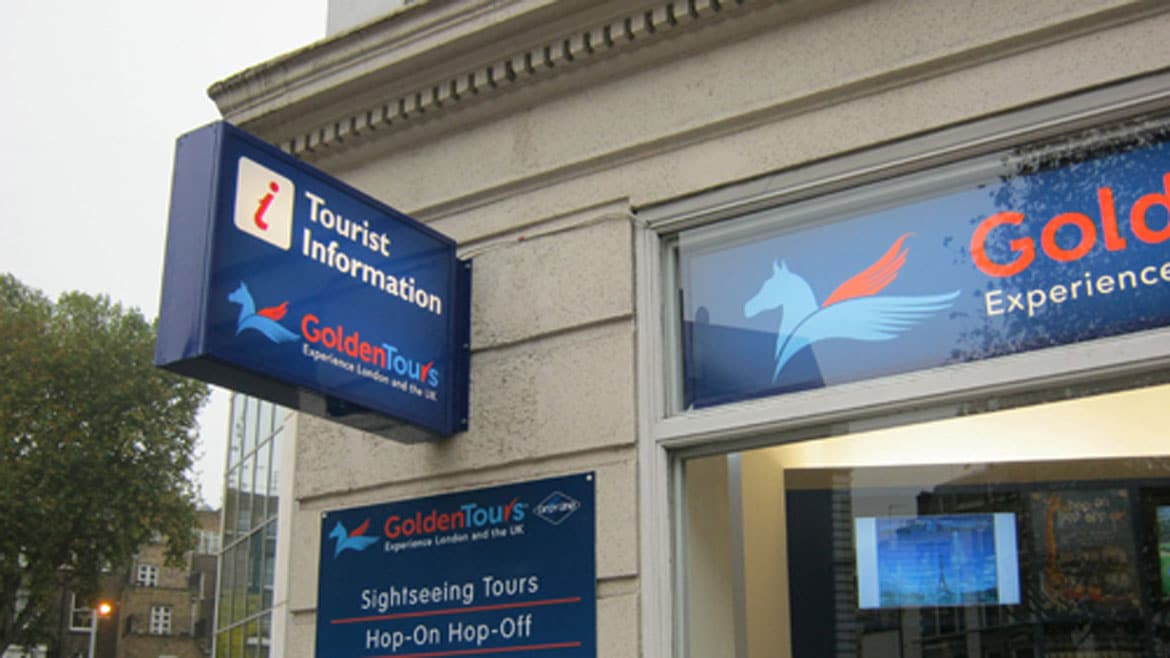

- Titan Lightbox Projection Sign

Titan Lightbox Projection Sign - Specification
- Double Sided
- Aluminium with acrylic face panels
- Outdoor
- Silver anodised or RAL painted finishes available
- Side loading
- Backlit with LEDs
- Standard or Bespoke Sizes
- Dimensions: 800 x 500mm standard size or custom sizes up to 1000mm width
- Depth: Slim-line 100mm deep double sided or 175mm for larger sizes
- Frame: 19mm / 27mm wide square beading
- Profile: Fixed aluminium profile with side fastening screws to release beading
- Colour: Silver anodised aluminium as standard. Black, white and RAL colours available at extra cost
- Diffusion panels: 5mm opal acrylic panel to each side (ready for vinyl application or DTM printed)
- Illumination: 12v LED modules. IP67 Rated; 6500K; 2.88w per module; 240 Lumens per Module. Standard size box (800 x 500mm) will have 10 LED modules fitted
- Accessories: Fitted with 65mm stand-off wall bracket

Item | Depth (mm) | Illumination | Finish | Visual size (mm | Panel size (mm | Overall size (mm | Unit Price Unprinted |
Unit Price With DTM Prints |
|||
W | W | W | |||||||||
800 x 500 LED SAA | 100 | IP67 LEDs | Silver Anodised | 762 | 462 | 786 | 486 | 800 | 500 | £257.50 | £352.91 |
800 x 500 LED BW | 100 | IP67 LEDs | Black or White | 762 | 462 | 786 | 486 | 800 | 500 | £307.00 | £402.41 |
800 x 500 LED RAL | 100 | IP67 LEDs | RAL Colour | 762 | 462 | 786 | 486 | 800 | 500 | £322.00 | £417.41 |
