  • 4K Ultra HD Resolution (3840 × 2160)
  • 55″, 65″, 75″ and 86″ Screen Sizes
  • Premium QLED Display Technology
  • Advanced Vellum™ Touch Technology
  • Up to 1034 cd/m² Brightness
  • 50 Simultaneous Touch Points
  • Optical Bonded Anti-Glare Glass
  • Flexible OPS Expansion for Future Upgrades
Quantity

Description

ActivPanel 10 Premium Interactive Digital Whiteboard for Education and Collaboration

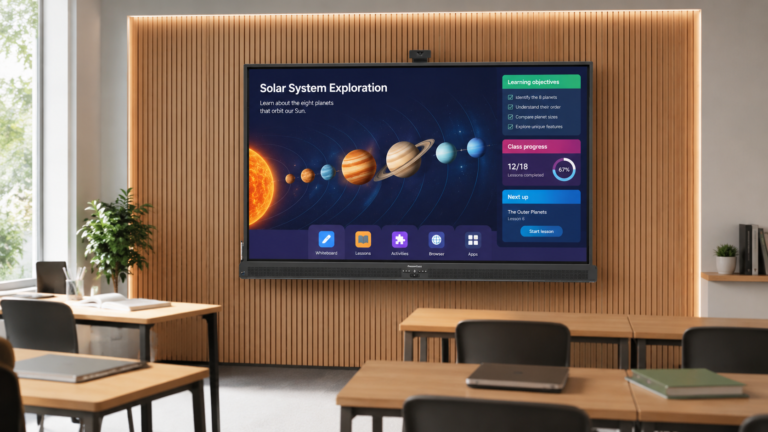

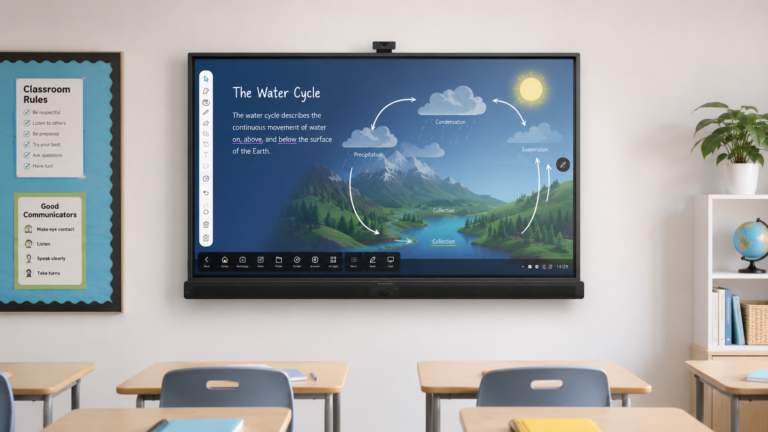

Promethean interactive whiteboard technology is at the heart of the ActivPanel 10 Premium, a premium 4K touchscreen display designed for modern classrooms, colleges, universities, training rooms and collaborative meeting spaces.

Available in 55″, 65″, 75″ and 86″ 4K screen sizes, the ActivPanel 10 Premium combines stunning QLED visuals, advanced touch technology, flexible computing options and built-in collaboration tools to create an engaging experience for teachers, presenters and users.

For schools and organisations looking for a high-performance Promethean interactive whiteboard, the ActivPanel 10 Premium offers a future-ready digital whiteboard solution that can be configured around existing teaching, presentation and IT requirements.

Built with a secure-by-design and modular approach, the ActivPanel 10 Premium gives organisations flexibility when choosing their preferred computing setup, including Android, Windows, Chrome, OPS modules, Chromebox devices and external connected PCs.

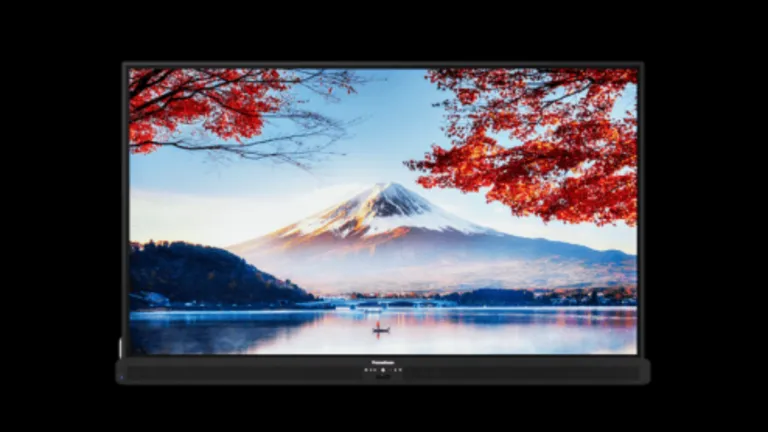

Premium 4K QLED Visual Performance

Featuring high-density QLED backlighting with Full-Array Local Dimming, the ActivPanel 10 Premium delivers excellent colour accuracy, strong contrast and outstanding image clarity.

Typical maximum brightness ranges from 880 cd/m² to 1034 cd/m² depending on screen size, helping content remain vibrant and easy to view in bright classrooms, lecture rooms, training environments and meeting spaces.

The optical bonded, anti-glare glass helps minimise reflections while improving touch accuracy and delivering a smooth, natural writing experience. With 1.07 billion display colours, 9H glass hardness and anti-fingerprint, anti-smudge coating, presentations, educational content and multimedia applications appear sharper, clearer and more lifelike.

Natural and Responsive Multi-Touch Experience

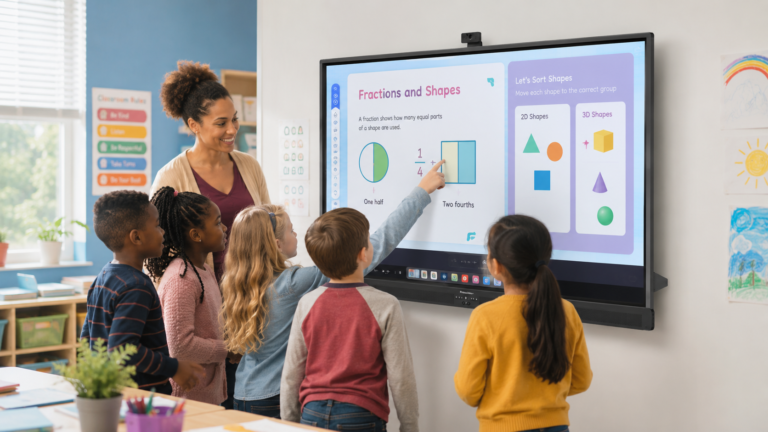

Powered by Promethean Vellum touch technology, the ActivPanel 10 Premium supports up to 50 simultaneous touch points, enabling multiple users to collaborate at the same time.

Highly responsive touch performance, 3 ms touch response time, sub-millimetre accuracy and intelligent palm rejection provide a smooth writing experience, whether annotating documents, brainstorming ideas, presenting information or delivering interactive lessons.

Included passive and active pens allow users to write naturally on screen, while the advanced active pen offers additional features such as air mouse functionality, pressure-sensitive handwriting, red dot highlighter and pagination control.

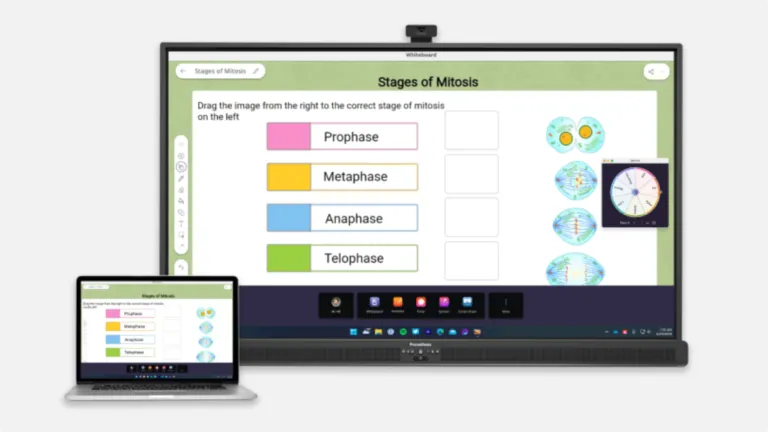

Flexible Computing and Future-Ready Collaboration

The ActivPanel 10 Premium is specified as No OS – Secure by Design, giving schools and organisations a secure display foundation that can be configured around their preferred technology environment.

Compatible Promethean options include OPS-M, OPS-A and Chromebox devices, while wider device compatibility includes Windows, ChromeOS, Android, macOS and Linux. This makes it suitable for schools, academy trusts, colleges and businesses that need an interactive whiteboard to fit existing IT policies and collaborative workflows.

Extensive connectivity options include HDMI, USB-C with power delivery, DisplayPort, USB-A, LAN and OPS expansion, making it simple to integrate the display into existing AV, classroom and meeting room systems. For other interactive display formats, view our digital touchscreen displays.

Powerful Audio and Communication

Integrated front-facing speakers and an 8-microphone array provide clear, room-filling audio and reliable voice capture, making the ActivPanel 10 Premium a strong solution for hybrid learning, video conferencing and collaborative meetings.

The built-in audio and microphone system helps support remote participation, staff training, lecture capture, classroom presentations and meeting room collaboration without needing a complicated AV setup.

Built for Demanding Education and Commercial Environments

Designed for continuous daily use, the ActivPanel 10 Premium features toughened anti-glare glass, a fanless design for ultra-quiet operation and a long-life LED backlight rated for up to 50,000 hours.

Its durable construction makes it ideal for busy classrooms, colleges, universities, training facilities, boardrooms and corporate collaboration spaces where the display may be used throughout the day.

Promethean Interactive Whiteboard Key Features

  • Available in 55″, 65″, 75″ and 86″ screen sizes
  • 4K UHD resolution
  • QLED high-density direct LED backlight
  • Full-Array Local Dimming
  • Optical bonded anti-glare display glass
  • 1.07 billion display colours
  • Typical maximum brightness: 55″ 977 cd/m², 65″ 942 cd/m², 75″ 880 cd/m² and 86″ 1034 cd/m²
  • 9H glass hardness
  • Anti-glare, anti-fingerprint and anti-smudge glass coating
  • No OS – Secure by Design
  • Promethean Vellum touch technology
  • Up to 50 simultaneous touch points
  • 3 ms touch response time
  • Touch accuracy of less than 1 mm
  • Palm rejection, palm erase and writing-hand rejection
  • Passive and active pen support
  • Active pen with air mouse, pressure sensitivity, red dot highlighter and pagination control
  • Integrated 8-microphone array
  • Integrated 2 x 25W soundbar with 20W subwoofer, except 55″ model
  • USB-C connectivity with up to 100W rear power delivery and 65W front power delivery
  • HDMI 2.1, DisplayPort 1.4, USB-A, USB-B touch, LAN and OPS connectivity
  • Wake-on-LAN support
  • OPS slot for optional computing modules
  • Compatible with Windows, ChromeOS, Android, macOS and Linux devices
  • Promethean ActivInspire Professional single user licence included
  • Promethean ActivSuite 2 seats included
  • Ultra-quiet fanless design
  • Long-life LED backlight rated to 50,000 hours

Interactive Whiteboard Applications

  • Schools, colleges and universities
  • Academy trusts
  • Classrooms and lecture theatres
  • Corporate meeting rooms
  • Training and conference facilities
  • Hybrid learning environments
  • Collaboration spaces
  • Boardrooms and presentation suites
  • Visitor experience and briefing centres

Education Pricing Available on Request

Promethean interactive whiteboard pricing can vary depending on the screen size, configuration, quantity, end user and current deal registration status.

For schools, colleges, universities, academy trusts and training providers, W&Co can request the best available project pricing through our authorised supply channel where available.

Please contact W&Co with the required screen size, quantity, delivery postcode and any installation requirements, and we will confirm the most suitable ActivPanel 10 Premium option for your project.

Promethean Interactive Whiteboard FAQs

Is the Promethean ActivPanel 10 Premium suitable for schools?

Yes. The Promethean ActivPanel 10 Premium is designed for classrooms, colleges, universities, academy trusts and training environments where teachers and presenters need a reliable interactive whiteboard for lessons, collaboration and shared content.

Is this a digital whiteboard or an interactive display?

The ActivPanel 10 Premium is technically an interactive display, but it is commonly used as a digital whiteboard for teaching, presenting, annotation and collaboration.

What sizes are available?

The Promethean ActivPanel 10 Premium is available in 55″, 65″, 75″ and 86″ 4K screen sizes, allowing schools and organisations to choose the most suitable size for their classroom, lecture room, training room or meeting space.

Can multiple users write on the screen at the same time?

Yes. The Premium model supports up to 50 simultaneous touch points, making it suitable for group learning, workshops, interactive lessons and collaborative presentations.

Can it work with Windows, Android and Chrome?

Yes. The ActivPanel 10 Premium supports flexible computing options, including Android, Windows and Chrome configurations, as well as external connected devices.

Why is Promethean pricing available on request?

Promethean pricing can depend on the screen size, configuration, quantity, end user and deal registration status. For education and project enquiries, W&Co can request the best available supported pricing where applicable.

For further information or advice on the Promethean ActivPanel 10 Premium interactive whiteboard, please contact W&Co and we will help you choose the most suitable digital whiteboard solution for your school, training room, meeting space or wider digital signage project. You can also browse our wider interactive digital whiteboards range or compare it with our existing digital whiteboard touchscreens.
