Front-Loading Flex Face Signs

Slim Front-Loading Flex Face Signs for Recesses

Front-Loading Flex Face Signs provide a slim, versatile solution for illuminated and non-illuminated commercial signage where space or access around the sign is limited.

The system fixes directly to the wall and can work with zero clearance around the frame. This makes it particularly useful for recessed shop fascias, internal corners, high-street locations and other installations where a conventional flex face system would be difficult to access.

Front access also creates more freedom when positioning signs close to neighbouring walls, architectural features or other signage.

Front Access for Recessed Fascias

Conventional flex face systems normally need enough working space around the frame to access the graphic retaining system.

The Front Loader overcomes this problem by offering two cover-screw positions. For recessed installations, the cover screw can sit at the front of the frame. This allows installers to access the sign face without needing space at the side.

For conventional wall-mounted installations where side access is available, the cover screw can instead sit at the side of the frame.

This flexibility makes Front-Loading Flex Face Signs particularly useful for awkward shopfronts, recessed fascias and other locations where surrounding structures restrict access.

Zero-Clearance & Side-by-Side Signage

The zero-clearance design allows the frame to sit tightly within its surroundings rather than requiring the usual access space around the sign.

This can also allow individual signs to sit directly alongside one another where the project design permits, creating cleaner and more continuous runs of commercial signage.

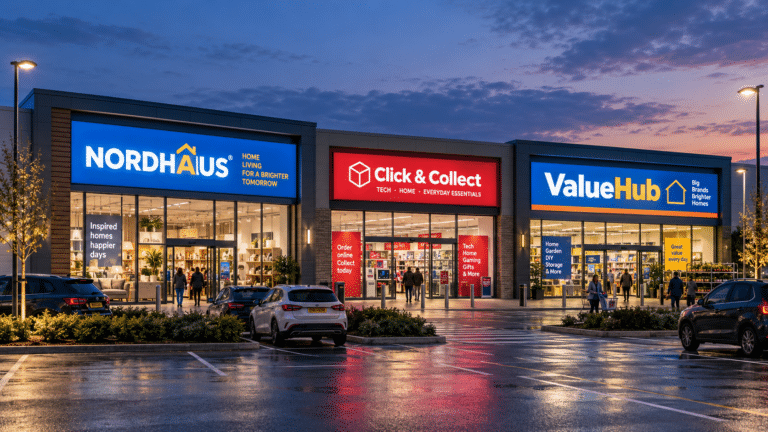

Applications can include retail parks, builders’ merchants, trade centres, shopping centres and multi-unit commercial buildings where several illuminated signs need to share the same fascia.

Slim 70mm Aluminium Profile

The Front Loader uses an aluminium frame approximately 70mm deep.

This makes it considerably shallower than our conventional Standard Flex Face Signs, which are available in 135mm, 165mm and 196mm profile depths.

The reduced depth creates a cleaner appearance where a traditional illuminated light box may project too far from the building.

Despite its shallow construction, the Front Loader can still accommodate internal LED illumination where the sign size and specification are suitable.

Illuminated or Non-Lit Front-Loading Signs

Front-Loading Flex Face Signs can be supplied as either internally illuminated or non-illuminated systems.

For illuminated applications, W&Co can specify suitable LED modules and branded drivers to provide bright, even illumination across the printed flex face graphic.

The shallow illuminated format is particularly useful where the visual impact of a light box is required but a deeper conventional profile would be unsuitable.

Where internal illumination is not required, the same Front Loader system can also provide a slim non-lit flex face solution.

Direct-to-Wall Installation

The Front Loader is designed as a wall-mounted flex face system and fixes directly to a suitable wall or building surface.

This straightforward construction can reduce the need for additional framing and simplify both production and installation.

It also makes the system well suited to shop fascias, cladding and recessed locations where keeping the overall sign construction shallow is important.

Support for Larger Flex Face Signs

For larger applications, Frame Support pieces can reinforce the Front Loader and provide additional stability.

Where required, the supports should sit at intervals of no more than 1000mm.

This allows the system to accommodate larger bespoke signs while retaining the benefits of the shallow profile and front-access design.

Black Clip Tensioning System

The Front Loader uses the established Black Clip system to tension the flexible graphic around the aluminium frame.

The clips grip the printed flex face material directly. This removes the need for sewn pockets, rods, eyelets, springs or similar fixings.

The system creates an evenly tensioned graphic and also helps simplify installation and future face replacement.

Bespoke Front-Loading Flex Face Signs

W&Co can supply Front-Loading Flex Face Signs to suit the dimensions, artwork and installation requirements of each project.

Aluminium system lengths are available in 5100mm and 6100mm. The system can be supplied in kit form or, for illuminated applications, in built sections where appropriate.

Frames can also be powder coated in a standard RAL colour to complement the building, fascia or surrounding signage.

The tensioned flexible graphic provides a large, seamless area for branding. When the artwork changes in the future, the graphic can be replaced without replacing the complete frame.

Front-Loading vs Standard Flex Face Signs

Front-Loading and Standard Flex Face Signs both provide effective solutions for large-format commercial signage, but they suit different installations.

Our Standard Flex Face Signs use conventional 135mm, 165mm and 196mm profiles. They remain a practical and cost-effective choice where there is enough space around the sign for installation and future graphic access.

Front-Loading Flex Face Signs use a much shallower 70mm profile and can work with zero clearance around the frame. This makes them particularly useful for recesses, internal corners, restricted spaces and closely positioned signage.

W&Co can advise which system best suits the dimensions, illumination, location and access requirements of your project.

Other Flex Face Sign Options

For a simple new non-illuminated installation, our Non-Lit Flex Face Signs use an ultra-slim 30mm fascia frame.

If you already have a suitable rigid-faced sign or light box that could be reused, our Retrofit Flex Face Signs can provide a cost-effective conversion option.

We also offer Flex Face Shapes & Letters for bespoke logos, lettering and irregular sign forms.

View the complete Flex Face Signs range to compare the available systems.

Typical Front-Loading Flex Face Sign Applications

• Recessed shop fascias
• High-street shopfronts
• Retail parks and shopping centres
• Builders’ merchants and trade centres
• Internal corners and restricted locations
• Side-by-side commercial signage
• Warehouses and industrial units
• Commercial building fascias
• Large-format exterior branding

Front-Loading Flex Face Sign Specifications

• Approximately 70mm-deep aluminium profile
• Zero-clearance installation
• Direct-to-wall mounting
• Front cover access for recessed installations
• Side cover access for conventional installations
• Internally LED illuminated or non-illuminated options
• 5100mm and 6100mm system lengths
• Standard RAL powder-coated finishes
• Frame Support pieces available for larger applications
• Support spacing of no more than 1000mm where required
• Black Clip tensioning system
• Kit-form or built-section supply depending on specification
• Bespoke dimensions and printed graphics

Front-Loading Flex Face Sign FAQs

What is a front-loading flex face sign?

A front-loading flex face sign allows access to the flexible graphic and retaining system from the front of the sign. This makes it particularly useful where there is limited or no access around the sides of the frame.

What are the main benefits of front-loading flex face signs?

The main benefits include a shallow profile, front graphic access, zero-clearance installation and greater flexibility for recesses, internal corners and closely positioned signage.

How deep is a Front-Loading Flex Face Sign?

The Front Loader has an aluminium profile approximately 70mm deep, making it considerably shallower than conventional illuminated flex face systems.

Can Front-Loading Flex Face Signs be illuminated?

Yes. The Front Loader can accommodate internal LED illumination where the sign dimensions and specification are suitable. It can also be supplied as a non-illuminated system.

Can Front-Loading Flex Face Signs be installed in a recess?

Yes. Recessed fascias are one of the main applications for the system. The cover screw can sit at the front of the frame so installers do not need access at the side.

Can flex face signs be installed directly next to each other?

Yes. The zero-clearance design can allow Front-Loading Flex Face Signs to sit directly alongside one another where the project design permits, creating cleaner continuous runs of signage.

Can Front-Loading Flex Face Signs be used for larger signs?

Yes. Frame Support pieces can reinforce larger applications. W&Co recommends positioning these supports no more than 1000mm apart where they are required.

What is the difference between Front-Loading and Standard Flex Face Signs?

Standard Flex Face Signs use deeper conventional profiles and normally require access around the frame. Front-Loading Flex Face Signs use a shallow 70mm profile and can work with zero clearance around the sign.

Can the flex face graphic be replaced later?

Yes. The printed flex face graphic can be replaced while retaining the aluminium frame, making future rebranding and replacement graphics more cost-effective.

Need a Front-Loading Flex Face Sign?

If your project involves a recessed fascia, restricted access, closely positioned signs or simply requires a shallow illuminated flex face system, W&Co can help specify the most suitable solution.

Contact W&Co for advice or a quotation for Front-Loading Flex Face Signs.
