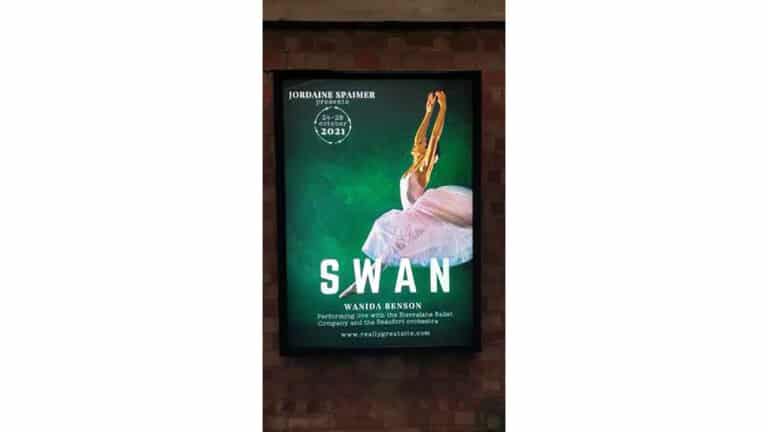

Strada LED External Poster Case

The Strada LED External Poster Case is a secure, illuminated display designed for professional outdoor advertising and promotional applications.

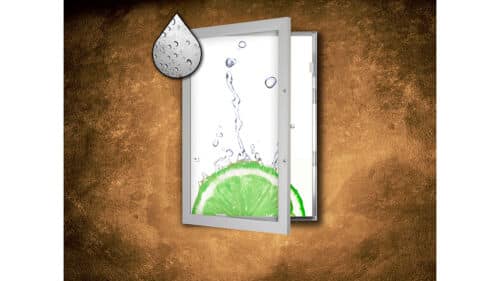

Built for external use, the Strada LED External Poster Case is manufactured with weather-resistant components including an IP65-rated LED system and an IP67-rated driver housed inside the unit. A single mains cable exits the case, ensuring a clean and reliable installation.

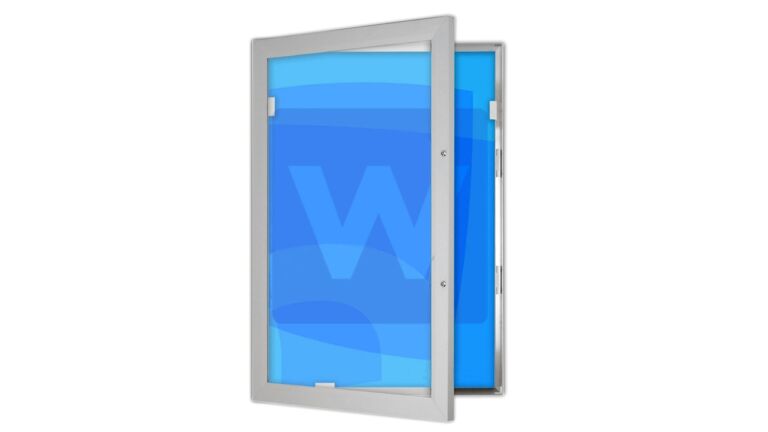

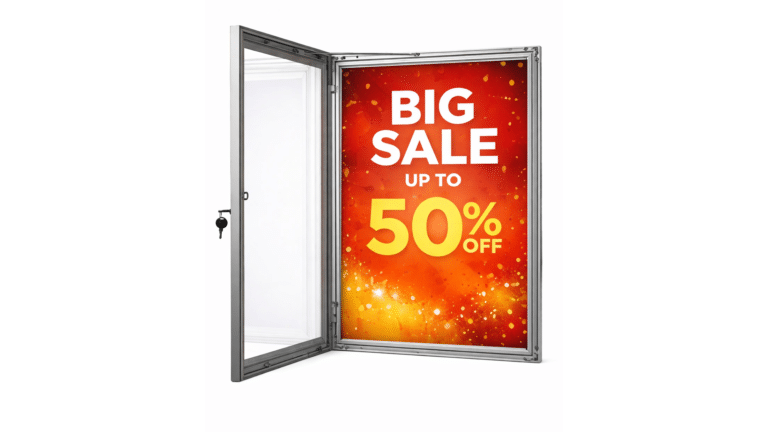

The poster case itself is both robust and secure, constructed from heavy-duty aluminium profiles with a 2mm PETG front window for strength and clarity. The locking front door, hinged along the long side, features a 52mm wide profile and is fitted with matched key locks for added security.

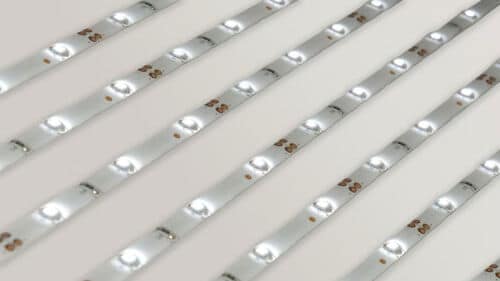

For ease of poster changes, the front door opens smoothly and allows quick access to the display. Inside, the 3mm opal acrylic diffuser ensures the light is spread evenly across the graphic, illuminated by a matrix of super-bright IP65-rated 3528 LEDs with no spotting or shadowing.

With an overall depth of just 130mm, the Strada is slim, stylish, and designed for long-term reliability. It is finished in silver anodised aluminium as standard, with powder-coated colours available on request to suit your environment.

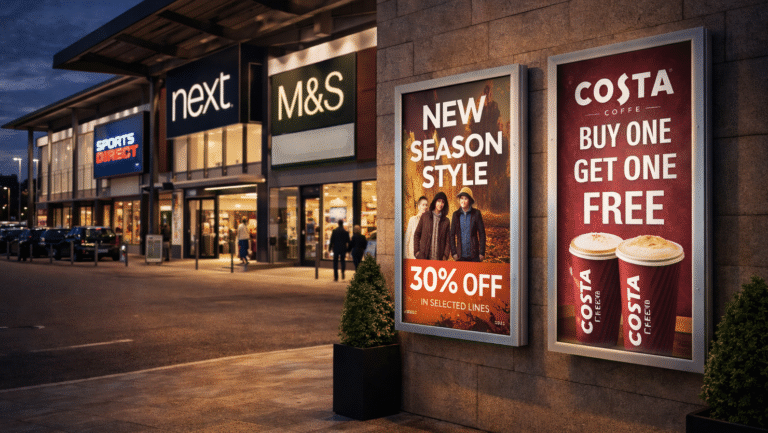

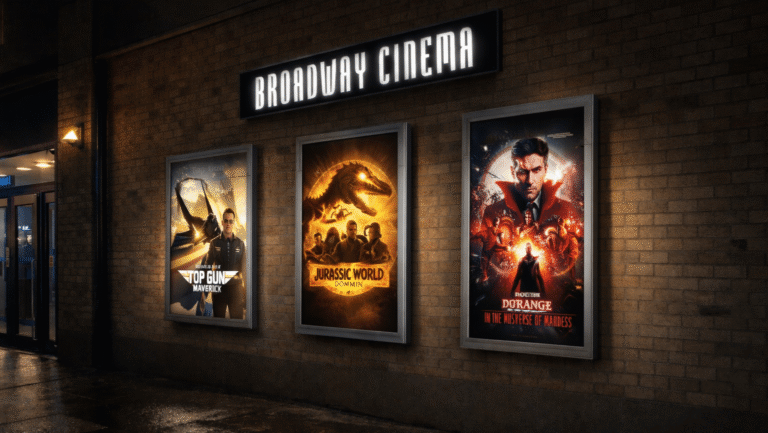

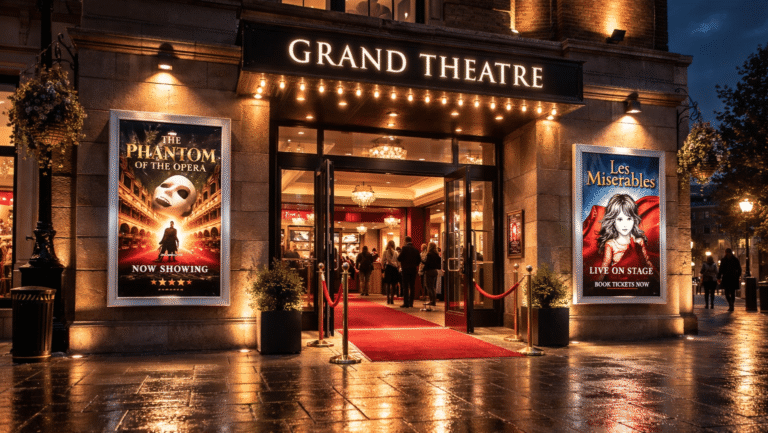

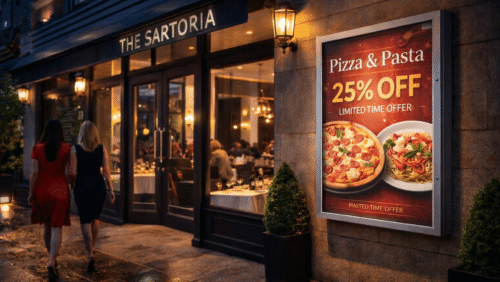

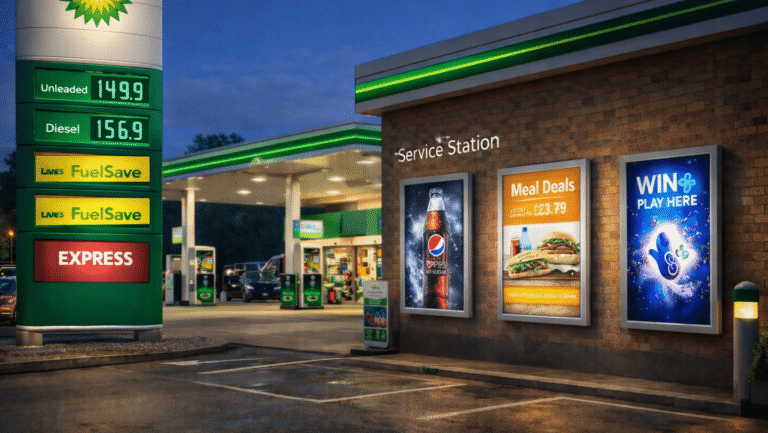

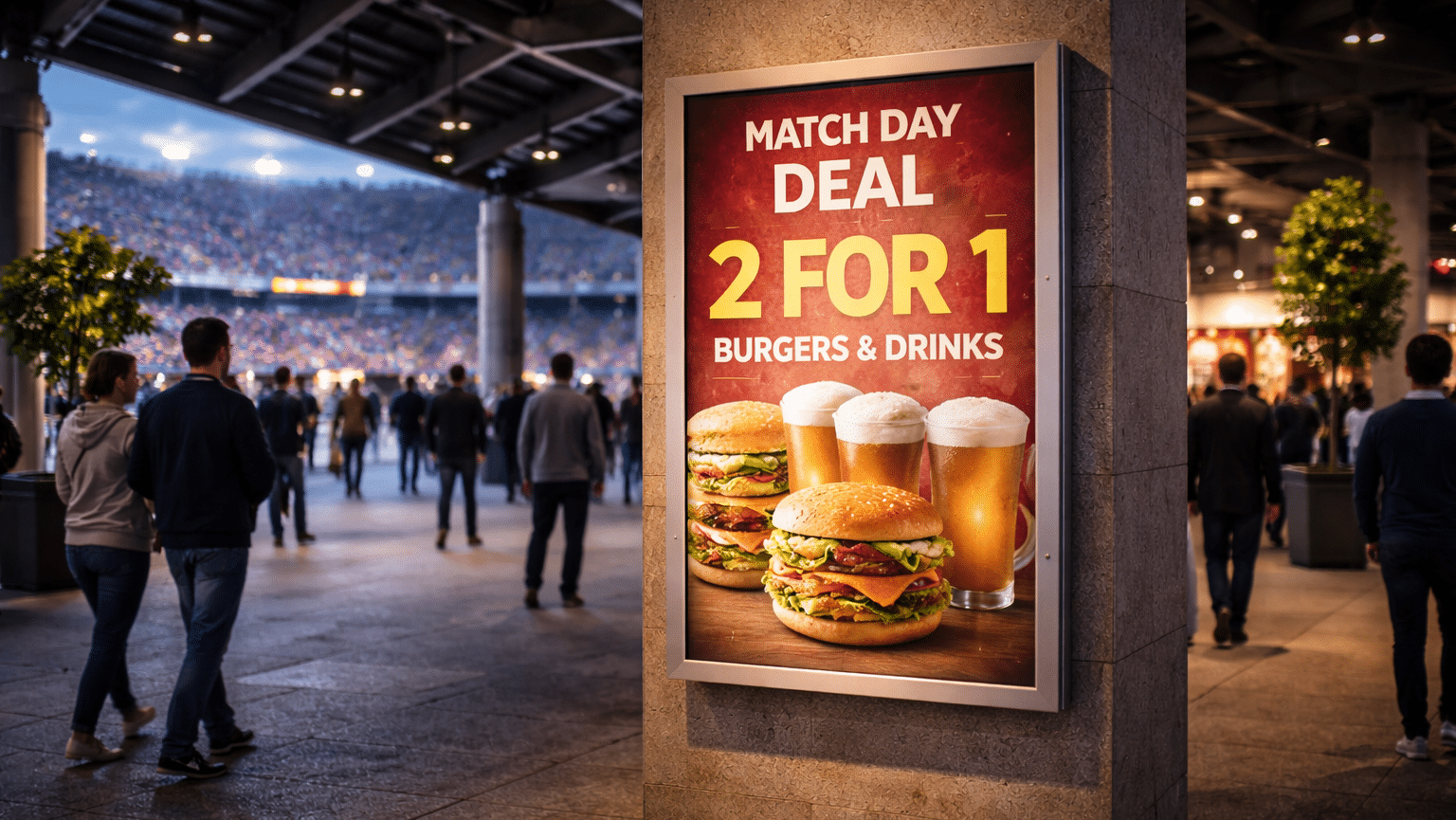

The Strada LED external poster case is the ideal solution for outdoor advertising in locations such as high streets, shopping centres, car parks, transport hubs, and theatres.

To see our whole range of poster cases, please click on the following link for our main page for Poster Cases.

Specification

• Overview: Outdoor illuminated poster case illuminated by IP65 rated 3528 LEDs and IP67 rated drivers. Aluminium profiles with a side-hinged locking front door fitted with a 2mm PETG front window.  Overall depth is 130mm.
• Poster Dimensions: A3, A2, A1, A0, 30″ x 40″, and 40″ x 60″
• Depth: 130mm.
• Profile: 52mm wide aluminium frame.
• Colour: Silver Anodised as standard. RAL colours are available upon request.
• Protection panel: 2mm PETG front window.
• Diffuser: 3mm opal acrylic diffuser
• Illumination: Backlit with a matrix of waterproof IP65 rated 3528 Super-Bright LEDs.
• Electrics: IP67 rated Driver located inside the lightbox, single mains cable.
• Access to poster: Side hinged key lockable door (2 x locks).
• Back Panel: Aluminium back panel
• Poster Type: For use with ‘duratran’ style posters only (quoted separately)

Advisory Notes:
As with all poster cases, this product is weather resistant but not waterproof. Due to changes in atmospheric humidity and water vapour in the air, condensation can occur in any poster case or notice board, similar to the inside of a car window, especially when changing the posters. If condensation does occur, simply air out the poster case (when weather is dry) to ensure moisture is evaporated.
Posters can be sealed to prevent prints becoming damaged if they come into contact with moisture or condensation.
When installing this product, ensure you mount to a flat and even surface and take care not to over tighten the fixings as you may distort the back panel and cause damage.
